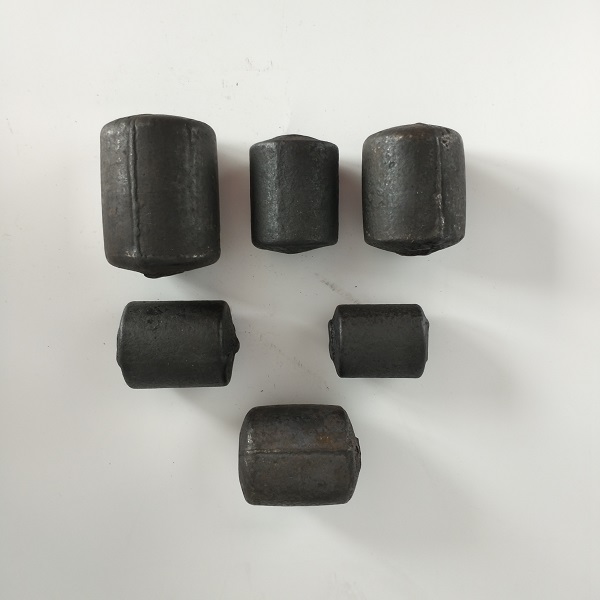

High Chrome Alloyed Grinding Cylpebs

Request a quote

Answer any question about the products for you.

  • *
  • *
  • *
Products Description
Grinding cylpebs are widely used in cement, mining and chemical industry etc.. The hardness reaches up to 64HRC(the surface and inner hardness tolerance with in 2HRC), which makes the high wear-resisting property. In addition, the distribution of the hardness gradient is average. The property- low wear rate, good toughness, prolongs its life, improves the productivity of the ball mill, and lowers user’s cost. Our quality is accord with GBT17445-2009 China national standard.

Processing Technique
Intermediate frequency furnace smelting high-quality steel scraps and mix chromium based on requirements.
Constant temperature casting process ensuring the quality, no solid nonmetallic impurity, no pore, etc.
Oil-immersed quench harden treatment enhance the hardness, Annealing process changing the internal organizational structure, lowering the breakage, and improving the performance.
After the Pre-furnace test, semi-finished products and finished products inspection was done by advanced spectrometer and durometer imported from Germany.

Chemical Elements
Name Chemical Elements (%)
C Si Mn Cr Mo Cu P S
High Cr Cylpebs 2.0-3.3 0-1.0 0.3-1.5 10-16 0-3.0 0-1.2 ≤0.1 ≤0.06

Physical Property & Microstructure
Name HRC Microstructure
High Cr Cylpebs ≥58 P+M+A
P- Pearlite       M- Martensite     A-Austenite

Size
Size(mm) Φ10 series Φ12 series Φ14 series Φ16 series Φ18 series Φ20 series
Φ25 series Φ30 series Φ35 series Φ40 series Φ45 series Φ50 series

Note: Any need to adjust the chemical elements, or add alloying element, it would be agreed with contract.
